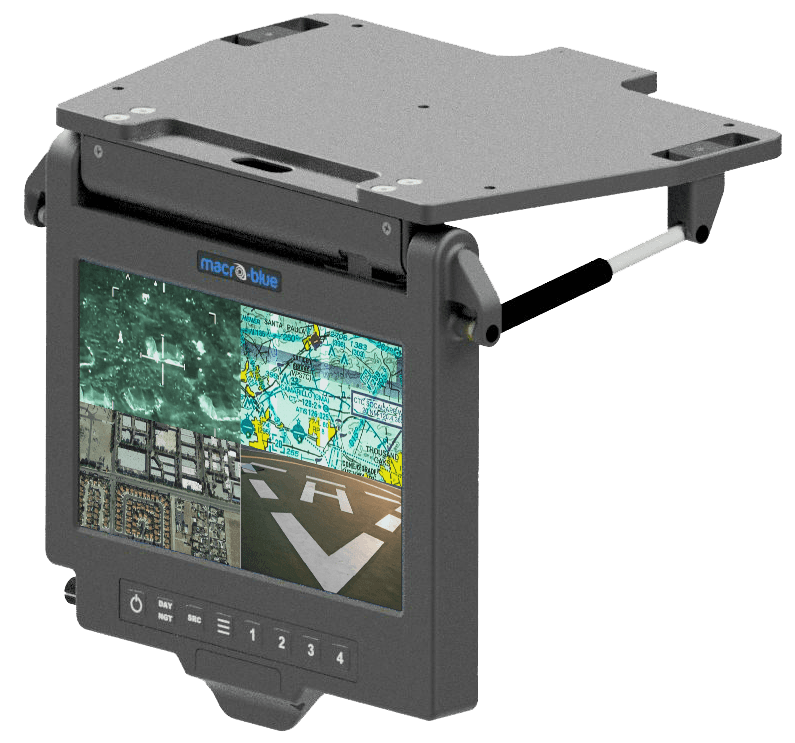

MB09W Stowable flip-down display head, deployed

MB09W
Stowable Display

DO-160G qualified and meets applicable MIL-STDs

MB09W Stowable specifications
Aspect Ratio:5:3
Orientation:Landscape or Portrait
Panel Resolution:1280×768 WXGA
Diagonal:9.0"
Luminance/Day:1000 nits
Operating Temp:−20 to +70 °C
Controller Type:Built-In Buttons (BIB)
Base Weight:5.00 lbs

Available options:

  • LinQ is standard equipment
  • Day-only or NVIS Dual-Mode Lighting
  • P-CAP touch screen with Multi-Host capability

Landscape configurations:

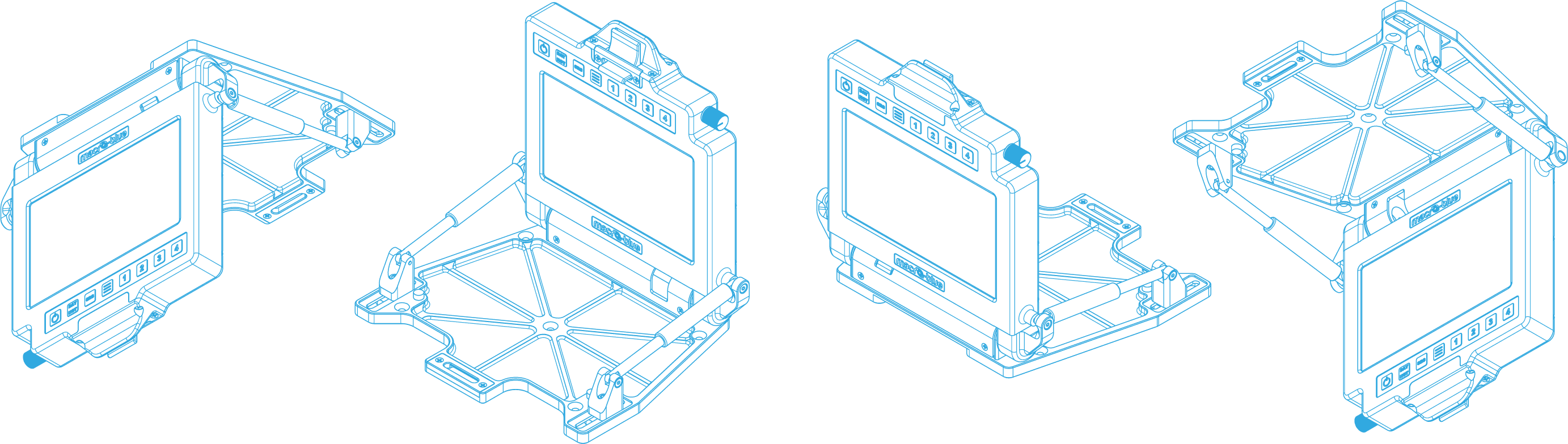

Four landscape mounting configurations for the stowable display — display facing outward or inward, each in flip-down and flip-up orientation
  1. 01Display Facing Outward, Flip Down Orientation
  2. 02Display Facing Inward, Flip Up Orientation
  3. 03Display Facing Outward, Flip Up Orientation
  4. 04Display Facing Inward, Flip Down Orientation

Portrait configurations:

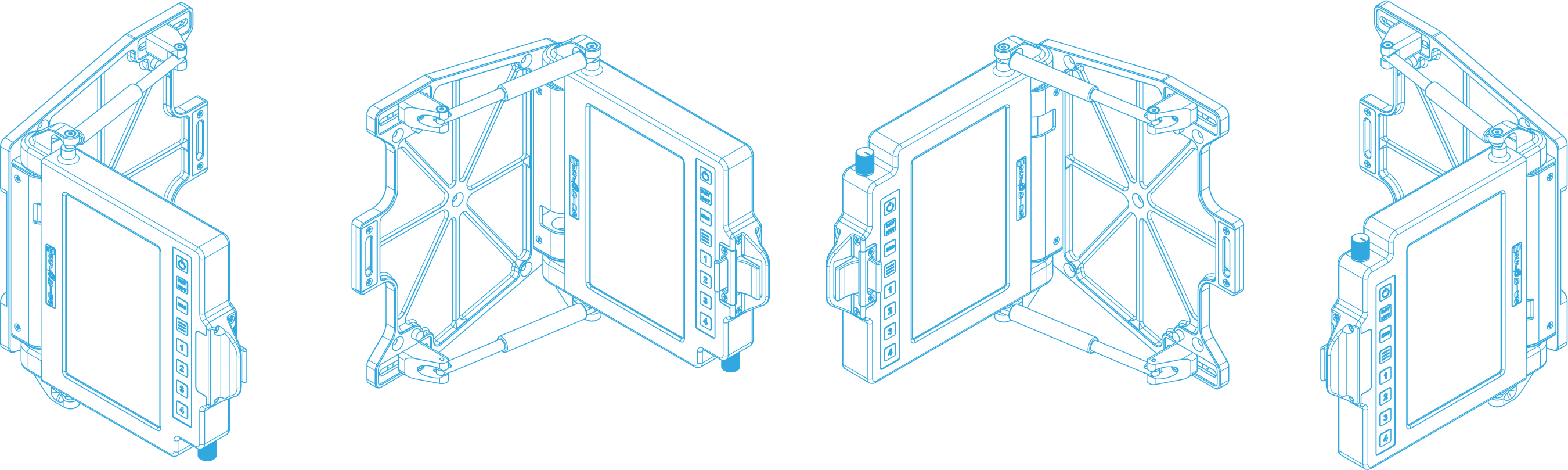

Four portrait mounting configurations for the stowable display — display facing outward or inward, each in right- and left-side mount orientation
  1. 01Display Facing Outward, Right Side Mount Orientation
  2. 02Display Facing Inward, Right Side Mount Orientation
  3. 03Display Facing Inward, Left Side Mount Orientation
  4. 04Display Facing Outward, Left Side Mount Orientation
Request a QuoteConfigure with AIQualifications
QualifiedDO-160G QualifiedMIL-STD-3009 NVISMIL-L-85762AMIL-C-675AS9100D CertifiedISO 9001 Certified
