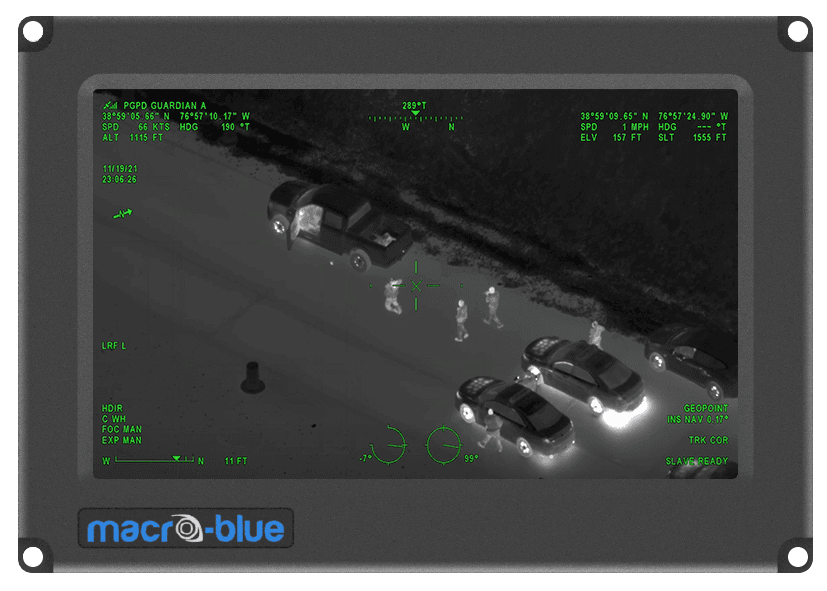

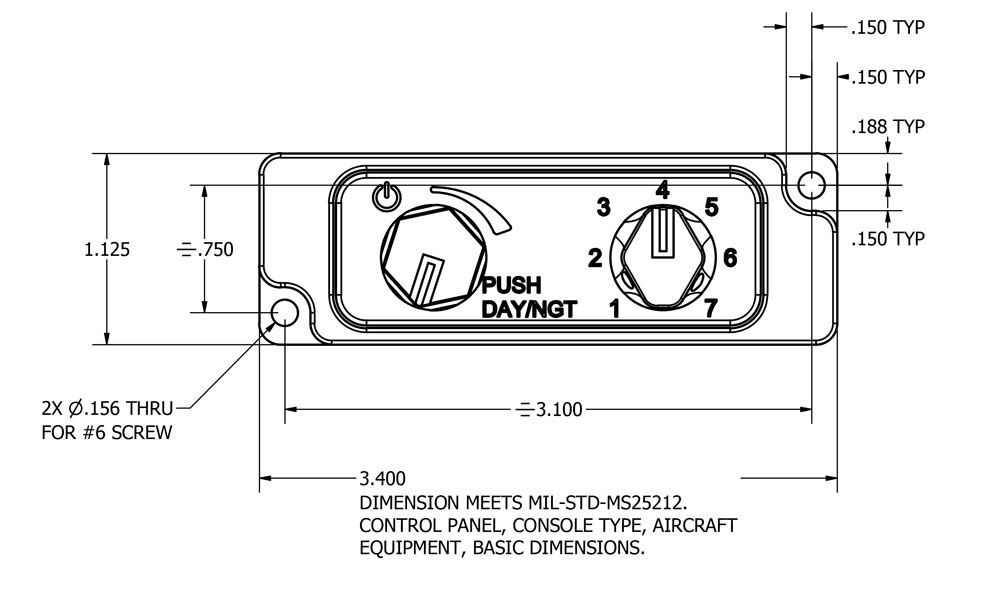

Alternate configurations available with plain bezel displays and external dual-knob controls.
LinQ System (Display Head + MBRX4)

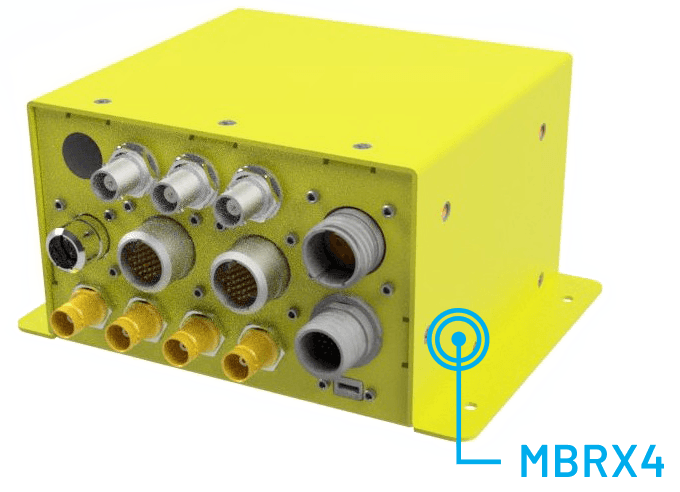

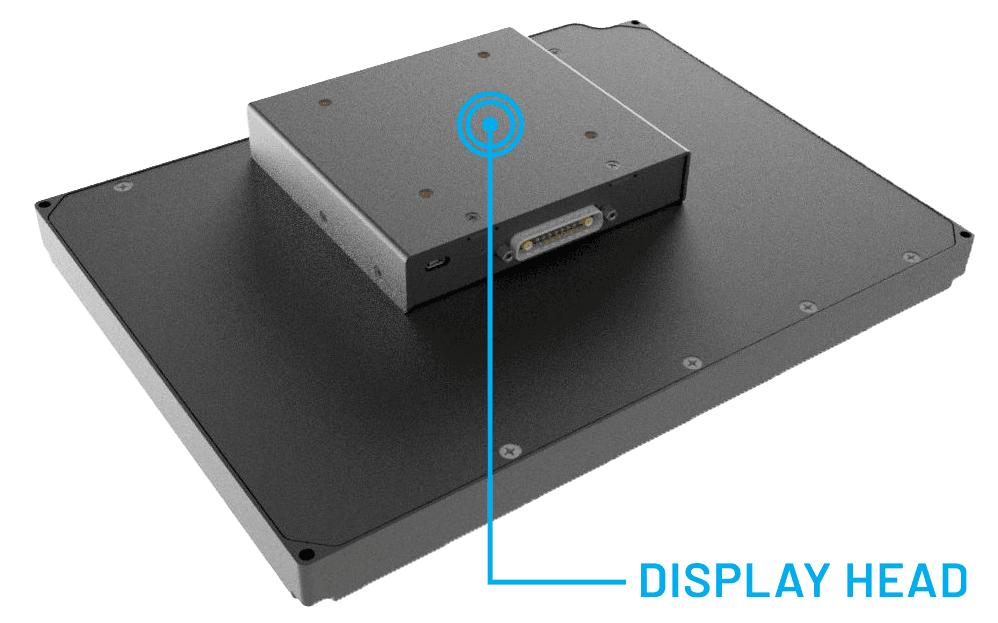

LinQ system consists of a thin profile display head that has a unique low height that pairs with the MBRX4 Remote Video Management System.
The LinQ system option is available on all displays and is standard equipment for the Stowable series of displays. A key benefit to the LinQ technology is reduced cabling, a pair of RG316 coaxial cables route from the display to the MBRX4 VMU in the avionics bay allowing all video cabling to be direct and short.

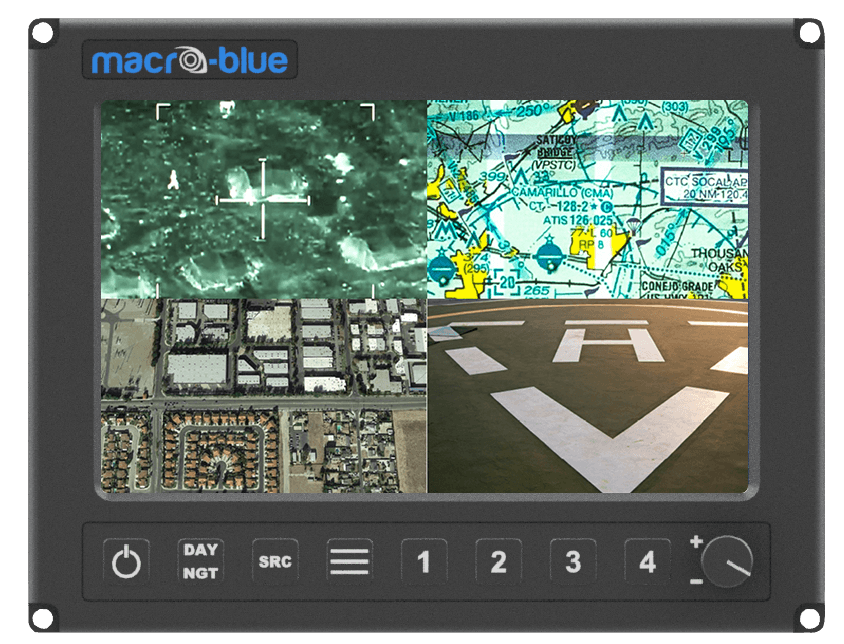

MB07W Display
DO-160G Qualified and meets applicable MIL-STDs
| Aspect Ratio | 5:3 |
|---|---|
| Orientation | Landscape or Portrait |
| Panel Resolution | 800×480 WVGA |
| Diagonal | 7.0" |
| WxH (Inches) | BIB: 7.50 × 5.80EXT: 7.50 × 5.25 |
| Luminance/Day | 1300 nits |
| Operating Temp | −20 to +70 °C |
| Controller Type | External Controls (EXT) orBuilt-In Buttons (BIB) |
| Base Weight | 2.25 lbs |
| LinQ (MBRX4) | Option |
Available Options:
- Day-only or NVIS Dual-Mode Lighting
- P-CAP touch screen with Multi-Host capability
- MBRX4 Remote Video Management System (LinQ system)
Video Interface Options:
- 3G HD-SDI video input (4, standard equipment)
- Composite video input (up to 3 available)
- Up to two DVI-I inputs, configurable for DVI or VGA
Data Interfaces:
- RS-232 TX/RX (3)
- RS-422/485 (2: one TX/RX and one ARINC 429 RX)
Accessories
Controller Options
MB07W pairs with external Macro-Blue controllers — specified by configuration. Current controller type: External Controls (EXT) or Built-In Buttons (BIB).
